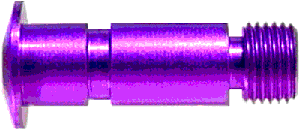

This machined aluminum piece replaces the mounting bolt, (the bolt that threads into the frame at the rear drop-out). The stock Suntour mounting bolt is made of cast and machined steel that is then chrome plated, weighing 21 grams. The aluminum is intended to shear or braek-away in a strong impact so there will be less damage to the frame. This aluminum one is machined from aluminum rod, (including being drilled through to reduce weight), and then anodized, for easy recognition by others. It is an exact replacement for any of Suntour's rear derailleurs, (XC Pro - both, XC Comp - both, both MD rears, the XC LTD and the X-1, also Superbe Pro, SL, and all Suntour road rear derailleurs). This aluminum replacement weighs only 6 grams. Removal of the stock Suntour one is easy, a small cir-clip is pried away from the mounting bolt on the back of the derailleur. This permits the entire mounting assembly to reveal itself. The aluminum piece slides into the same position the original occupied, you reposition the spring turning it counter-clockwise past the plate stop, compress the assembly and push the cir-clip back into place again. It is quite easy and I've just done it to the XC Pro MD using just a medium flat-blade screwdriver and my hands. It took less than 40 seconds with no difficulty. This weighs 15 grams less than the originals and is a perfect replacement. Black, Lavender or Grey.
Color-BK-L-GY $ Price in Catalog
This Titanium mounting bolt replaces the chromed steel one found in the Superbe Pro, SL, Radius, and Edge road derailleurs. It also replaces the pivot bolt in all XC Pro models, XC Comp models and the XC LTD rear derailleurs. It is machined like the other SRP bolts which follow. The installation is as simple as the aluminum one above and it weighs just 11 grams. $ Price in Catalog
This is an exact replacement for the mounting bolt for all Shimano rear derailleurs that do not come with a mounting plate. This bolt is made in 2 models one is for all mode is made before 1994 and includes but is not limited to; RX100, 105SC, Ultegra, Dura-Ace, pre '94 Deore LX - both cages, Deore DX - both cages, pre '94 Deore XT - both cages, and XTR. The other is for the 1994 M737 XT, the M563 LX models and the STX models made as Hyper-C units for the 1994 model year. This bolt is intended to shear or break-away in a strong impact to minimize damage to the frame. The replacement bolt is machined from aluminum rod and even drilled through to reduce weight. It has the same 5mm allen that the stock Shimano bolt comes with, so your tools don't have to change. The added deep notch that is cut at the center of this bolt actually exists on the Shimano one for an O-ring that helps seal contaminants out of the mounting mechanism. The O-ring on the Shimano bolt was able to be removed and re-installed on the aluminum replacement. The stock Shimano bolt is made of cast and machined steel that is then chrome plated, and weighs 18 grams. This aluminum replacement weighs just 5 grams. It's color anodized so others will recognize the subtle upgrade you've performed. The installation process for this bolt is the same as the one above, required only the same screwdriver and bare hands, in about 40 seconds, (admittedly it took about 90 seconds on short cage rears, in our case the Dura-Ace model because the cage itself interferes). For Shimano rear derailleurs, this represents a 13 gram weight savings over the stock steel bolt. Black, Lavender or Silver.
Color-BK-L-S $ Price in Catalog
1994 XT, LX, STX Color-BK-L-S) $ Price in Catalog
Specialty Racing Products produces a Titanium replacement mounting bolt for the same Shimano rear derailleurs listed above. It is beautifully machined from a single piece of Titanium rod and includes the notch for the O-ring seal. To reduce it's weight the bolt is drilled deeply from the outside and then broached to create the 5mm hex head fitting that appears on the original bolt. The Titanium Silver color is less shiny than the Chrome finished Shimano but the fact that it's an upgrade may less obvious to the trained eye. The SRP mounting bolt weighs 9 grams with the 1994 XT, LX and STX version weighing just 7.5 grams. Installation is exactly the same as the aluminum model. For Shimano rear derailleurs, this represents a 9 gram weight savings over the stock steel bolt.
$ Price in Catalog
1994 XT, LX, and STX $ Price in Catalog
Specialty Racing Products produces a Titanium replacement pivot bolt for the Shimano XTR, Dura-Ace and Ultegra rear derailleurs. The pivot bolt is the bolt that joins the right pivot link on the derailleur to the pulley cage. The pivot bolt used on other Shimano models is not removable, so that failure or destruction of their pulley cage requires complete replacement of the derailleur. The SRP bolt is beautifully machined from a single piece of Titanium rod and includes the notch for the O-ring seal that appears on the original, to seal dirt out of the assembly. The O-ring can be removed and re-installed onto the SRP replacement. The SRP bolt is deeply drilled from the outside and then punched to create the 5mm allen head fitting. To change the pivot bolt, you remove a small steel set screw with a number 2 Phillips screwdriver and rotate the pulley cage away. The upper, (or guide), pulley is removed using a 2mm allen wrench, then a 5mm allen wrench turned counter-clockwise unfastens the pivot bolt. After moving the O-ring, re-trace the steps in reverse, we found it took slightly more than 2 minutes using just the screwdriver and the two allen wrenches. The original Shimano bolt is made of chromed steel and weighs 13 grams, while the SRP replacement weighs only 6 grams. $ Price in Catalog
The pivot bolt is also made in aluminum in 6 colors Blue, Black, Green, Grey, Lavender, or Red
Alum Pivot bolt (Color-B-BK-GN-GY-L-R) $ Price in Catalog
The SRP Shimano mounting and pivot bolt are available in a kit for a slightly reduced pair price. Again using both of these can be done only on a Dura-Ace, XTR or Ultegra rear. $ Price in Catalog
SRP makes three types of titanium replacement bolts for the Record rear derailleur. They are all machined Titanium 6Al-4V rod. The first is a mounting bolt replacement that changes out the 20.5 gram for a 10.5 gram Ti one. Installation follows the same description used for the other mounting bolts described above and requires a small flat bladed screwdriver, bare hands and about 40 seconds. It will replace the mounting bolt used in the Record, Record OR and Chorus. The second bolt replaces the 13 gram steel pivot bolt with a Ti replacement that weighs 7.5 grams and will work in the Reocrd or Record OR only. The pivot bolt is sold only as part of a two piece kit that includes the Ti mounting bolt. Installation of the pivot bolt follows steps used for pivot bolts described above and requires a 5mm hex wrench, bare hands and less than 1 minute. SRP also makes Ti replacements for the steel pulley bolts (axles) which weigh 7 grams in the original steel and 4 grams in Titanium. Sold in pairs, the pulley bolt installation requires a 4mm hex wrench, bare hands, about no time and will work on the Record, Record OR and Chorus.
SRP/Campy Ti Mounting bolt $ Price in Catalog
SRP/Campy Ti Mount/Pivot kit $ Price in Catalog
SRP/Campy Ti Pulley bolts (pair) $ Price in Catalog
The same Campy bolts are avaialable in aluminum anodized in 6 colors, Blue, Black, Green, Grey, Lavender, or Red
Alum Mounting bolt (Color-B-BK-GN-GY-L-R) $ Price in Catalog
Alum Mount/Pivot kit (Color-B-BK-GN-GY-L-R) $ Price in Catalog
Alum Pulley bolts (pair) (Color-B-BK-GN-GY-L-R) $ Price in Catalog
SRP has created a pair of after-market replacement pulley bolts. These replace the two bolts that pass through the pulley cage, the pulley and thread into the rear cage plate. These bolts are compatible with the ones used in Shimano Dura-Ace, Ultegra, 105SC-8 and XTR rear derailleurs only!! They are machined from Titanium 6Al-4V rod, broached with a 3mm hex head, then have the threads rolled onto them. The Titanium pair weighs 2 grams, the steel ones they replace weighs 5 grams. $ Price in Catalog
The same bolts are available in aluminum in Blue, Black, Green, Lavender, Red or Grey.
Color-B-BK-GN-GY-L-R $ Price in Catalog
